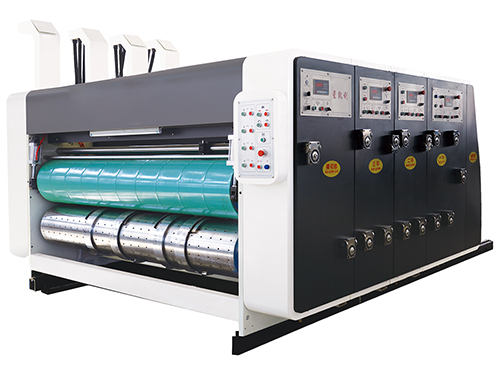

Fully computer high speed flexo printing slotting die cutting machine

Fully computer high speed flexo printing slotting die cutting machine

Product Description: Our machine can complete many process of cardboard one-time,for example:1-3 color cardboard printing,slitting,creasing,tr...

CONFIGURATION

1

Color group

To be configured according to user’s needs

2

Printing paper

A,B,C,A/B,B/C and A/B/C tape corrugated paperboard (the maximum interval 11mm)

3

Machine model

920

1224

1424

1628

4

Max.paper size

900×2100mm

1200×2500mm

1400×2500mm

1600×2900mm

5

Max.printing size

900×2000mm

1200×2400mm

1400×2400mm

1600×2800mm

6

Skip feeding paper

1100×2000mm

1400×2600mm

1600 ×2600mm

1600×2800mm

7

Min.paper size

260×500mm

380×650mm

380×650mm

400×650mm

8

Printing plate thickness

7.2mm

7.2mm

7.2mm

7.2mm

9

Design speed(piece/min)

300pcs/min

250/min

200pcs/min

 180pcs/min

10

Economic speed(piece/min)

260-280pcs/min

210-230pcs/min

160-180pcs/min

140-160pcs/min

11

Tinted precision

±0.5mm

±0.5mm

±0.5mm

±0.5mm

12

Slotting precision

±1.5mm

±1.5mm

±1.5mm

±1.5mm

13

Max.slotting depth

7 ×220mm

7×300mm

7×350mm

400mm

increase the blade, increase the slot depth

14

positive knife.

Negative knife

150×150×150×150mm

250 ×90 ×250 ×90mm

170×170×170×170mm 260×90×269×90mm

260×90×269×90mm 260×90×269×90mm

260×90×269×90mm 260×90×269×90mm

15

Max.die-cutting size

900×2100mm

1100×2500mm

1400×2600mm

1600×2800mm

16

Printing roller diameter



ɸ292mm

ɸ393mm

ɸ441mm

ɸ528mm


WHOLE MACHINE PERFORMANCE

Our machine can complete many process of cardboard one-time,for example:1-3 color cardboard printing,slitting,creasing,trimming,slotting,angle cutting,die cutting,punching and so on.Lead-edge adopts suction feeding system, air volume can adjust,main motor is controlled by frequency conversion.PLC computer phase electric adjustment.every link unit pneumatic lock,electric open and close,fine grinding gear,gear lubrication adopts spray lubrication,keyless structure lock,topping of our machine is accurate,high printing precision,easy to operate and maintenance,high automatic level,high efficiency ect.

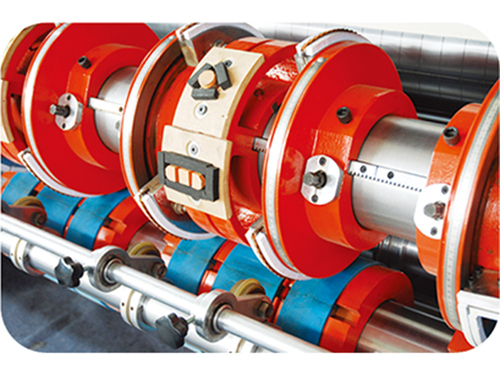

Die cutting and slotting dual-purpose type

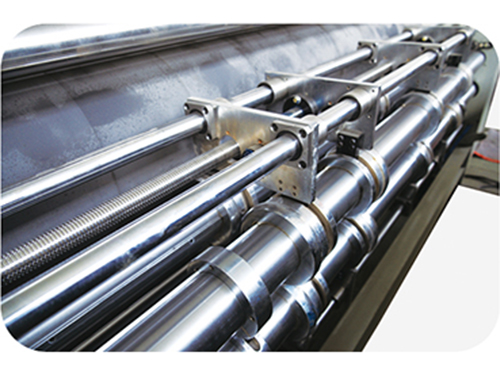

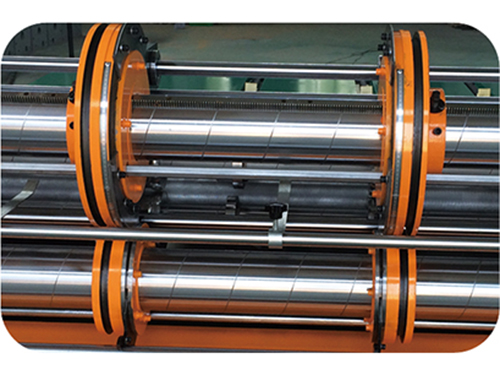

 Electric double pressure line Quadruple slotted type Manual slotting type
