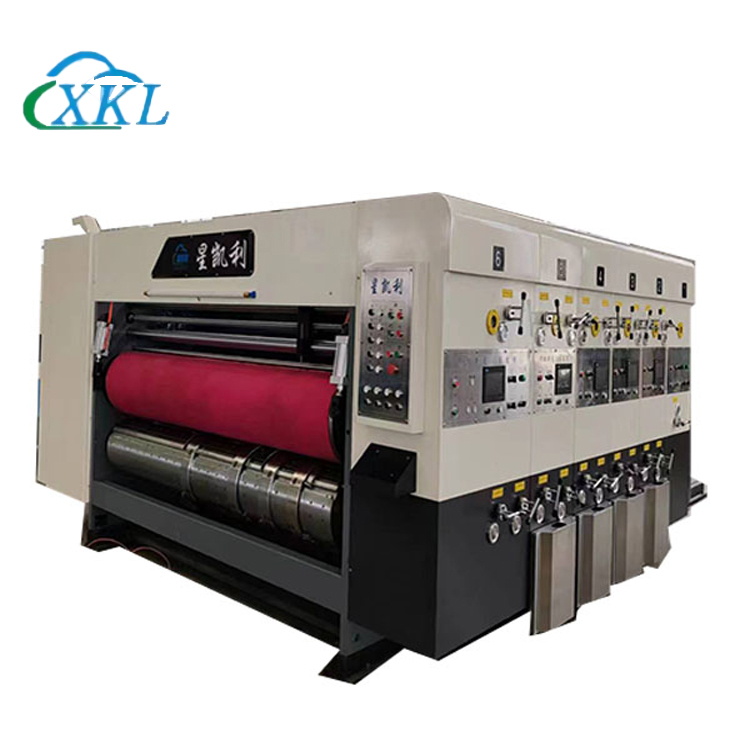

Fully computer high speed flexo printing slotting die cutting machine
WHOLE MACHINE PERFORMANCE
Our machine can complete many process of cardboard one-time,for example:1-5 color cardboard printing,slitting,creasing,trimming,slotting,angle cutting,die cutting,punching and so on.Lead edge adopts suction feeding system, air volume can adjust,main motor is controlled by frequency conversion.PLC computer phase electric adjustment.every link unit pneumatic lock,electric open and close,fine grinding gear,gear lubrication adopts spray lubrication,keyless structure lock,topping of our machine is accurate,high printing precision,easy to operate and maintenance,high automatic level,high efficiency ect.
CONFIGURATION
1 | Color group | To be configured according to user’s needs | |||
2 | Printing paper | A,B,C,A/B,B/C and A/B/C tape corrugated paperboard (the maximum interval 11mm) | |||
3 | Machine model | 920 | 1224 | 1424 | 1628 |
4 | Max.paper size | 900×2100mm | 1200×2500mm | 1400×2500mm | 1600×2900mm |
5 | Max.printing size | 900×2000mm | 1200×2400mm | 1400×2400mm | 1600×2800mm |
6 | Skip feeding paper | 1100×2000mm | 1400×2600mm | 1600 ×2600mm | 1600×2800mm |
7 | Min.paper size | 260×500mm | 380×650mm | 380×650mm | 400×650mm |
8 | Printing plate thickness | 7.2mm | 7.2mm | 7.2mm | 7.2mm |
9 | Design speed(piece/min) | 300pcs/min | 250/min | 200pcs/min | 180pcs/min |
10 | Economic speed(piece/min) | 260-280pcs/min | 210-230pcs/min | 160-180pcs/min | 140-160pcs/min |
11 | Tinted precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
12 | Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm |
13 | Max.slotting depth | 7 ×220mm | 7×300mm | 7×350mm | 7×400mm |
increase the blade, increase the slot depth | |||||
14 | positive knife. Negative knife | 150×150×150×150mm 250 ×90 ×250 ×90mm | 170×170×170×170mm 260×90×269×90mm | 260×90×269×90mm 260×90×269×90mm | 260×90×269×90mm 260×90×269×90mm |
15 | Max.die-cutting size | 900×2100mm | 1100×2500mm | 1400×2600mm | 1600×2800mm |
16 | Printing roller diameter
| ɸ292mm | ɸ393mm | ɸ441mm | ɸ528mm |
