2 Ply corrugated paperboard making plant

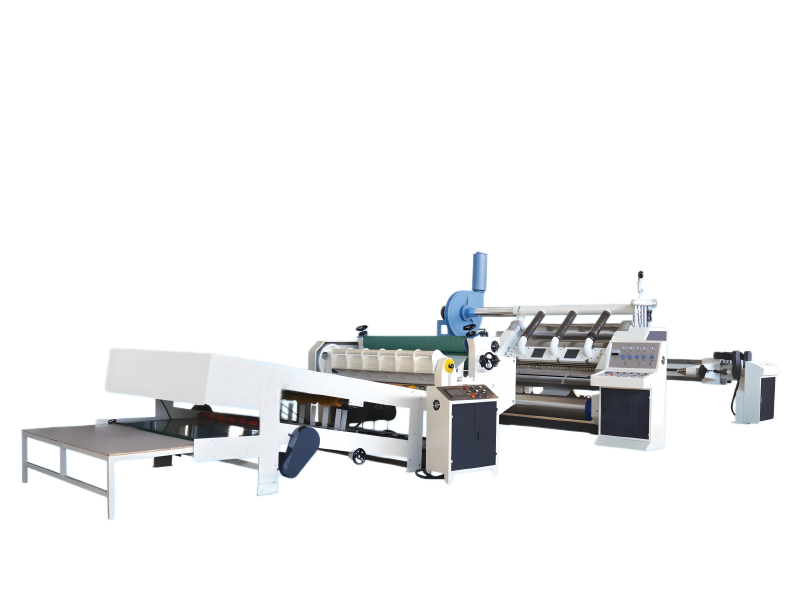

The production line consists of a semi-automatic production line consisting of a web support,a corrugated board forming machine and a rotary paper-cutting machine. The roll-type material can be continuously produced and cut into single-faced corrugated paper of the required specifications. It has the characteristics of advanced production process, high efficiency strong batch adaptability and good working conditions. It is an ideal equipment for technical transformation of medium and small carton factories.

◎Design  speed:150m/min.

Actual production speed:50-130m/min Oslitter quantity:5.

◎Min.Slitter width:180mm.

ORow knife time:1-3s.

◎Slit  accuracy:0.5mm.

OCutting length:300～9999mm.

◎Cutting accuracy:1mm(uniform speed)

OStacking height:250~600mm(according to customer needs to select)

◎The maximum length of cardboard stacking:1600mm.

◎Constant tension  cardboard  delivery,delivery  speed  and  single-facer speed strict synchronization.

◎Alloy steel blade slitter,automatic sharpening,long bladelife,high cutting quality.

◎Slitters row independent servo control,change over fast,accurate,reliable.

◎Slitter speed frequency motor,frequency control,follow cardboard speed synchronous adjustment.

◎When change orders,left and right absorb waste place folowing edged knife electric adjustment.

OCutter part box adopt quality castings ,strictly aging treatment,precision machining,long-term stable operation of equipment.

◎Alloy steel spiral cutter shaft,precision machining,balancing correction, high stiffness,low inertia.

◎Crosscutting knife Bryant Germany AC servo controller

◎The highest rate of 70/min machine.

◎The length of the longest1500mm machine.

◎The machine can be up to4 copies of the paper collection.

◎The machine can realize automatic points automatic step.

◎The highest of each stack stack height is 300mm.
