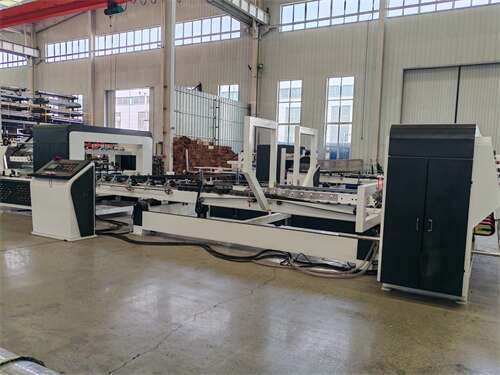

Automatic folder gluer machine

WHOLE MACHINE PERFORMANCE

AFG series Automatic folder gluer machine consiste of three sections: vacuum feeding section,glue & floding section , counter & stacker section.  Frequency conversion motor with quality inverter adjust speed. PLC & Touch Screen control system for easy operation and running stable.  Average speed 150sheets/min. Energy Conservation and High Speed, Saving Labor Cost.

Feeding section:

◆Vacuum suction feeding to feed warping paperboard easily.

◆Quality electromagnetic clutch and brake adopted,feeding section controled

independent,operation easily.

◆Scorer wheel adjustable,suit for 2-8mm thick paperboard

◆Second creasing struction can impress again the paperboard which was not

creased well.

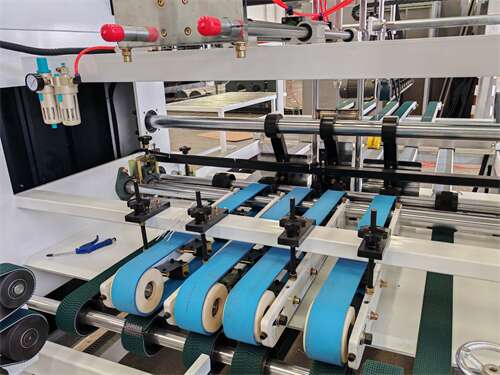

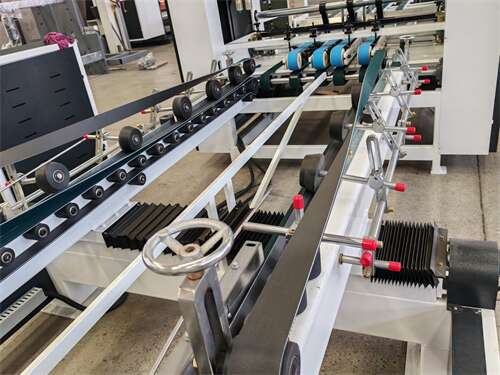

Glue&Folding section:

◆Simpless structure and high reliability, glue quantity adjustable, cleaning easily.

◆Stainless steel glue wheel adopted, long life and saving glue cost.

◆Imported quality rubber belt adopted,automatic folding.

◆With paperboard rectify device and creasing rectify device.

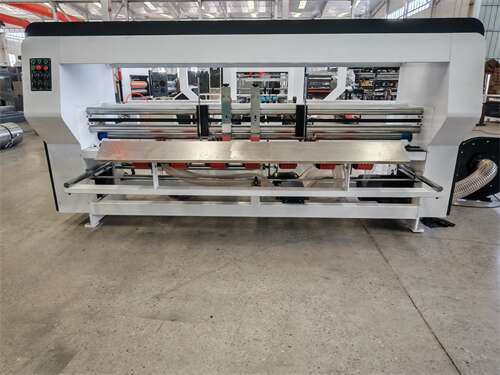

Counter & Stacker section:

◆Stacking and counting are simple and reliable;

◆Digital control,operation easily and reliable.No-stop put in data and automatic

counting.

◆With rectification function.

◆Paperboard counting and put out by pneumatic, stable and quickly.
