Automatic gluing and stitcher machine

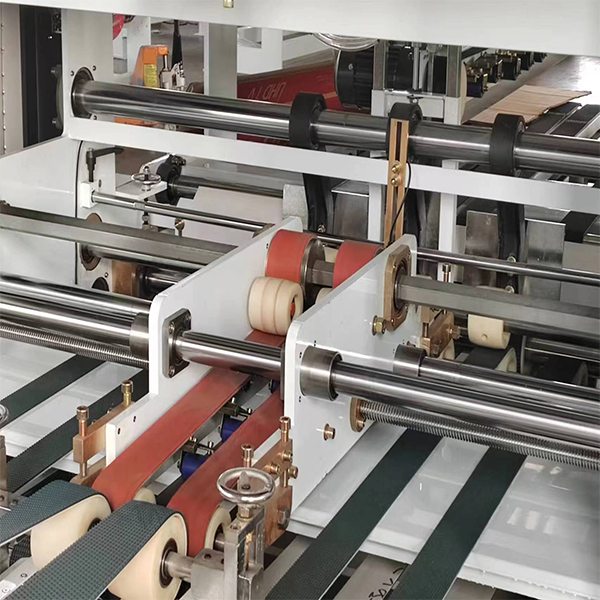

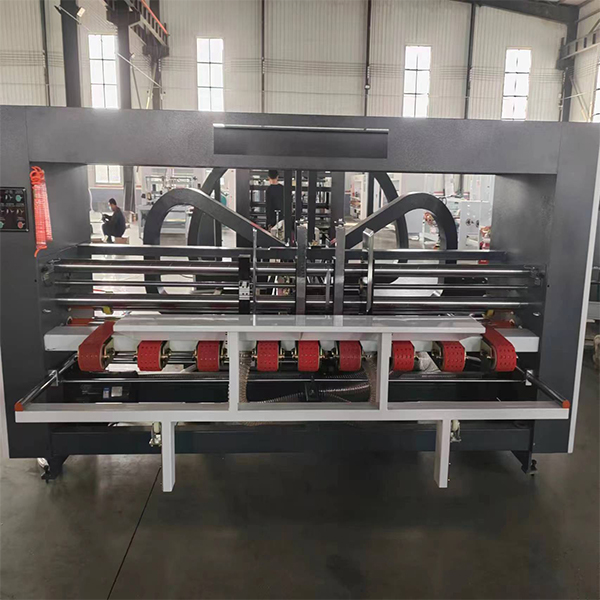

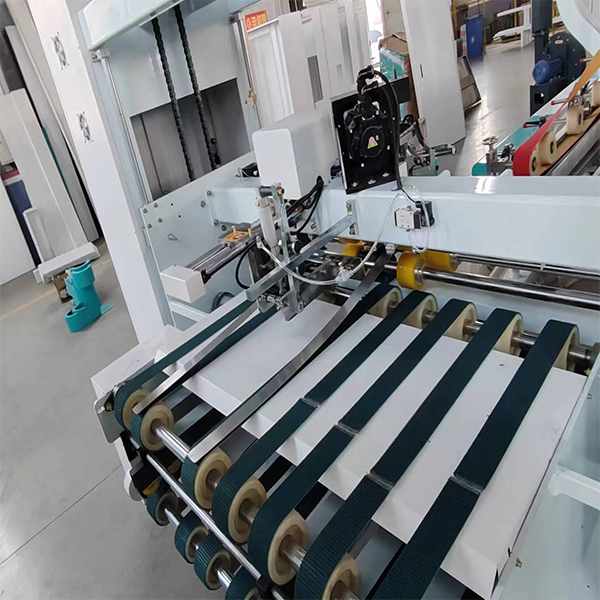

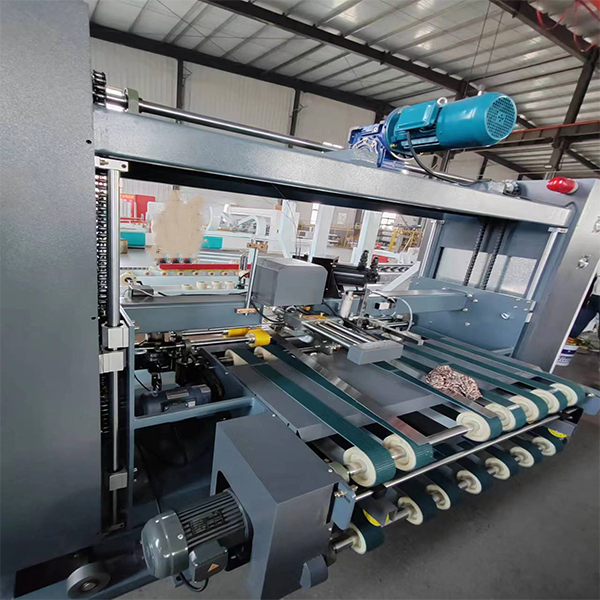

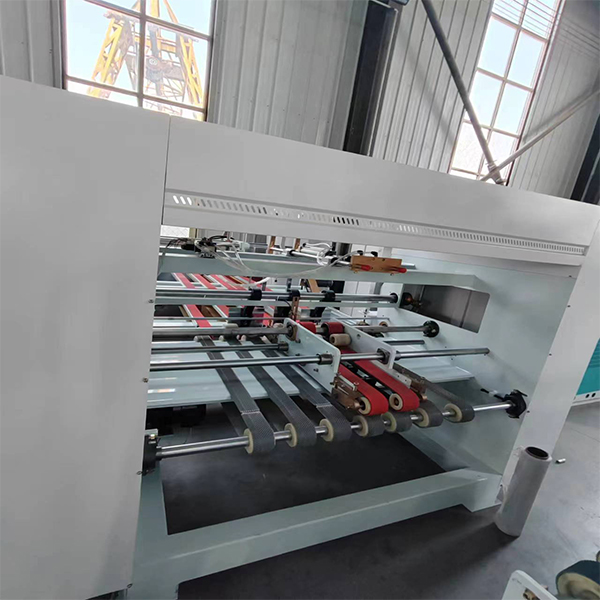

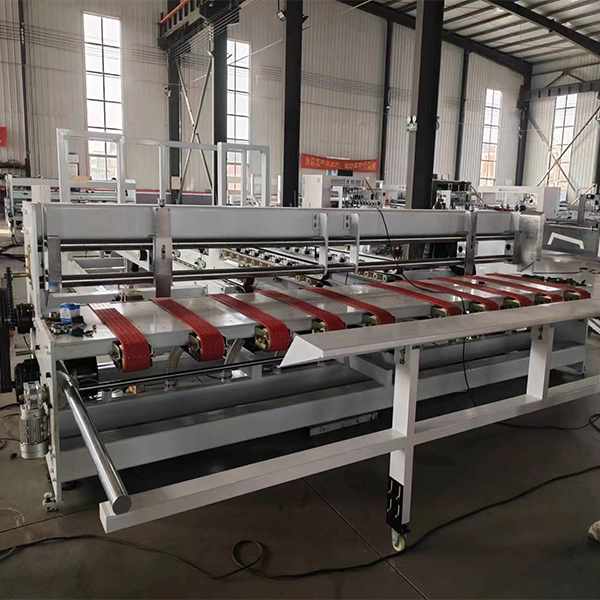

◆ It consists of four parts: paper feeding part, gluing folding part, nailing and gluing box pressing part, counting and accumulation part.

◆ Digital display speed regulation, microcomputer amplitude modulation, simple, fast, reliable and accurate control mode.

◆ Automatic paper feeding, automatic gluing and folding, automatic counting, automatic stacking and output.

◆ The average speed of sticking boxes is 150 pieces/minute, the maximum speed is 220 pieces/minute, and the maximum speed of nailing boxes is 60 pieces/minute. High efficiency and energy saving are our pursuit.

◆ The electrical appliances of the whole machine are designed and produced based on the concept of safe and reliable work and convenient operation and maintenance.

◆ The color touch human-computer interface and Panasonic master control PLC are used for control, which is convenient to operate and user-friendly. The touch human-computer interface and master control PLC are both reserved with program upgrade interface, which is convenient for future equipment upgrade.

◆ The main power motor of the whole machine has variable frequency speed regulation, stable speed, environmental protection and energy saving (about 30% electricity saving), and full protection for the motor (when the voltage is too high or too low, when the motor is overheated or the current is too large).

◆ The frequency converter automatically alarms and stops moving, and the corresponding alarm code is displayed.

◆ Siemens AC contactor is used as the contactor for controlling the motor of the whole machine, and thermal overload relay is added to protect the motor when the motor is overloaded.

◆ The wires at the connection points of all parts of the machine are connected by aviation plug-ins, which is convenient for disassembly and maintenance.

◆ The front and back of the machine are equipped with operation buttons, and the main functions can be operated in the front and back of the machine. The panel of the operation buttons is made of stainless steel plate, beautiful and elegant. The panel uses graphics and words to explain the convenient functions of the buttons, which is easy to understand.

CONFIGURATION
