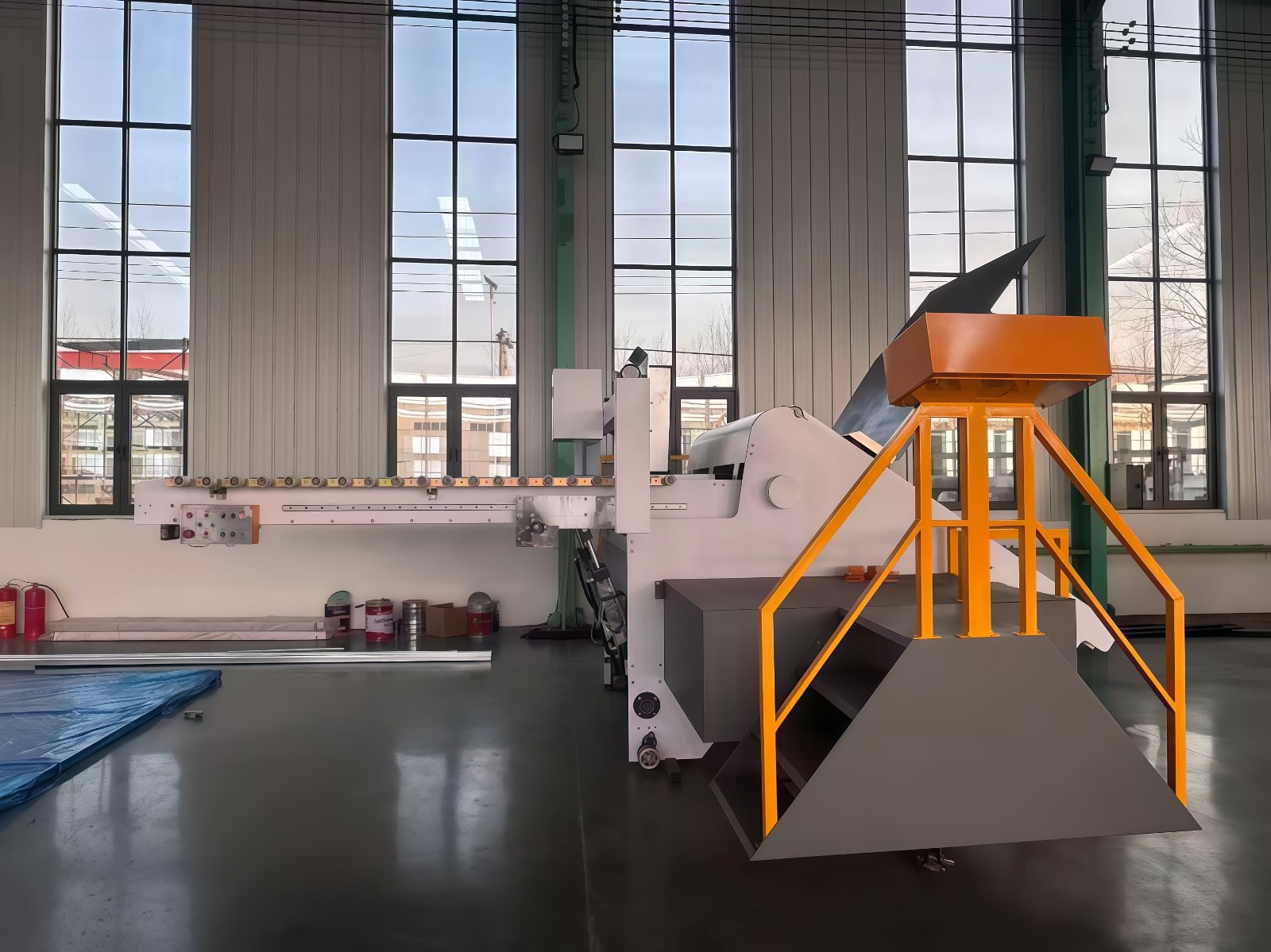

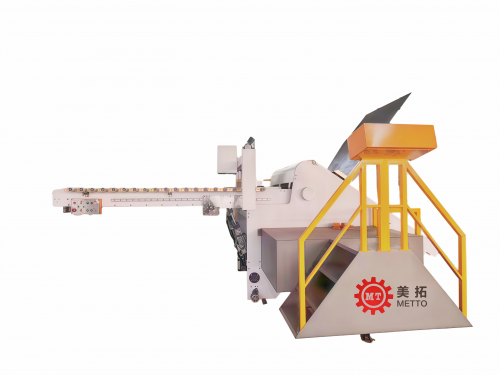

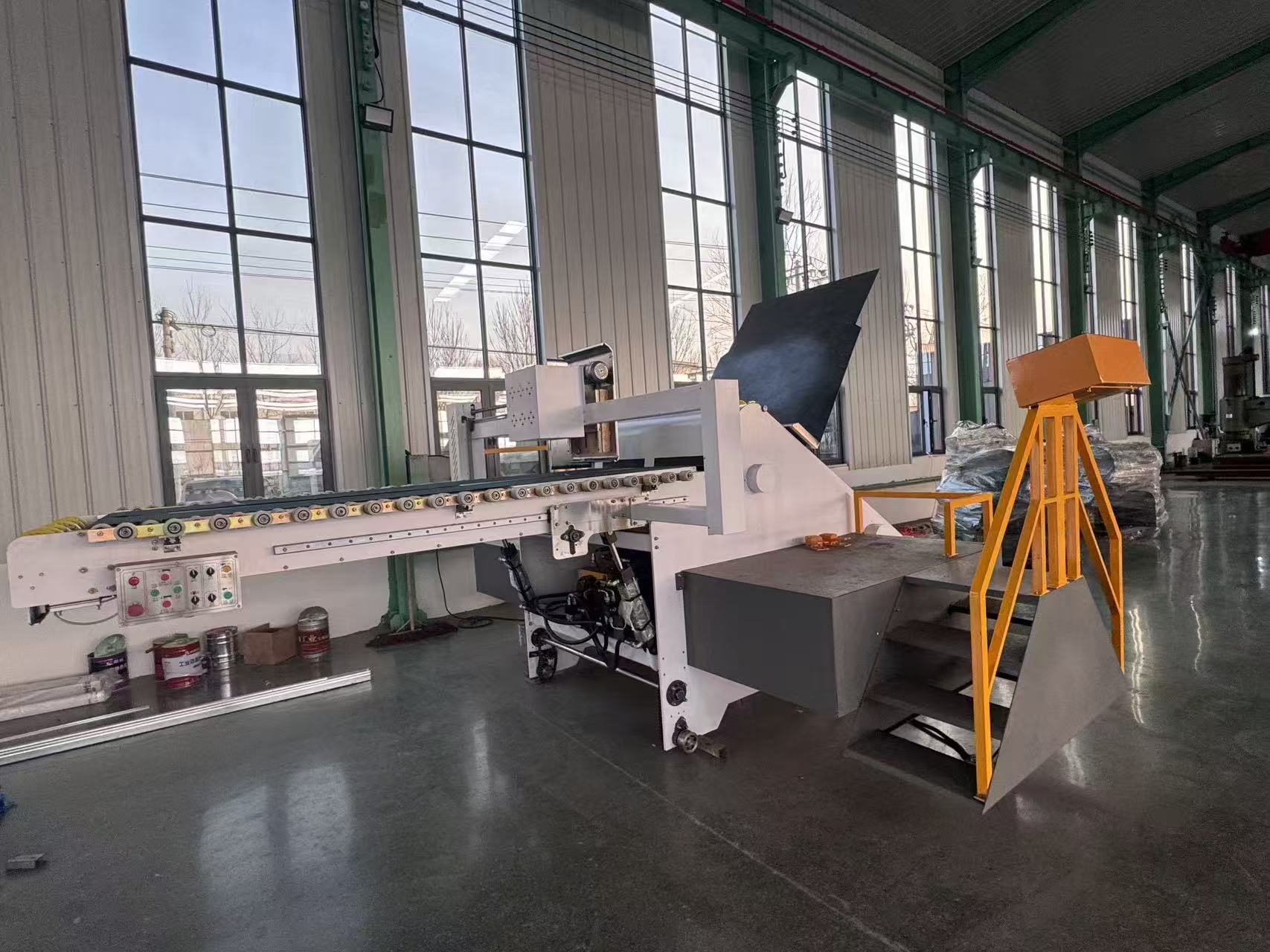

Semi Auto Paperboard Pre Feeder Machine
Semi Automatic Paperboard Pre Feeder Machine
Machinery specifications:
Maximum paper feeding size | 1400 x 2600mm |
Minimum paper feeding size | 300 × 500mm |
Maximum paper loading height | 2200mm |
Maximum paper weight | 2000kg |
Maximum paper feeding speed | ≥300 sheets/min(Paperboard thickness less than 4mm) ≥200 sheets/min ((Paperboard thickness more than 4mm and less than 8mm ) |
Maximum speed requirements | A. Paper loading height > 1600mm; B. More than 2 stacks per board; C. Board warping requirements (per meter) : less than 30mm for three layers and less than 20mm for five layers; D. The printed sides of the cardboard should be on the same side; E Keep at least two sheets of paper waiting on the front end (unpowered, powered) roller of the paper feeder toothed fork; F. The maximum speed may vary depending on the operator's proficiency. |
Motor brand | Zhejiang Zhengda |
Paper feeding method | Single fold/fish scale |
Paper feeding method | Unpowered roller/pallet pressure truck |
Paper feeding conveyor belt function | Variable frequency speed adjustment |
Operation mode | Single/Double |
Machine Features:
1. Side stoppers automatically position and adjust.
2. One-click scheduling and memory order function.
3. Paper conveyor belt up/down oil pressure mode.
4. The paper push tooth tilts, returns, ascends, descends, using high-efficiency oil pressure.
5. When the press retracts, the paper feeder retracts.
6. Hydraulic standby function (automatic standby over set time).
7. The machine runs on a new type of wear-resistant track.
8. Two wide conveyor belts for paper feeding.
9. Relevant parameters human-machine interface adjustment.
10. Abnormal text display can be quickly eliminated.
11. Shockproof treatment for the fuel tank.
